Farm Tube Gates.
Heavy-duty galvanized steel tube gates for pastures, entries and livestock containment. Fully welded round-tube frame with a vertical Z-brace, hinges and screw hooks included, in 4 to 18 ft lengths.
What you get with CHANGE farm tube gate.
1. Product introduction

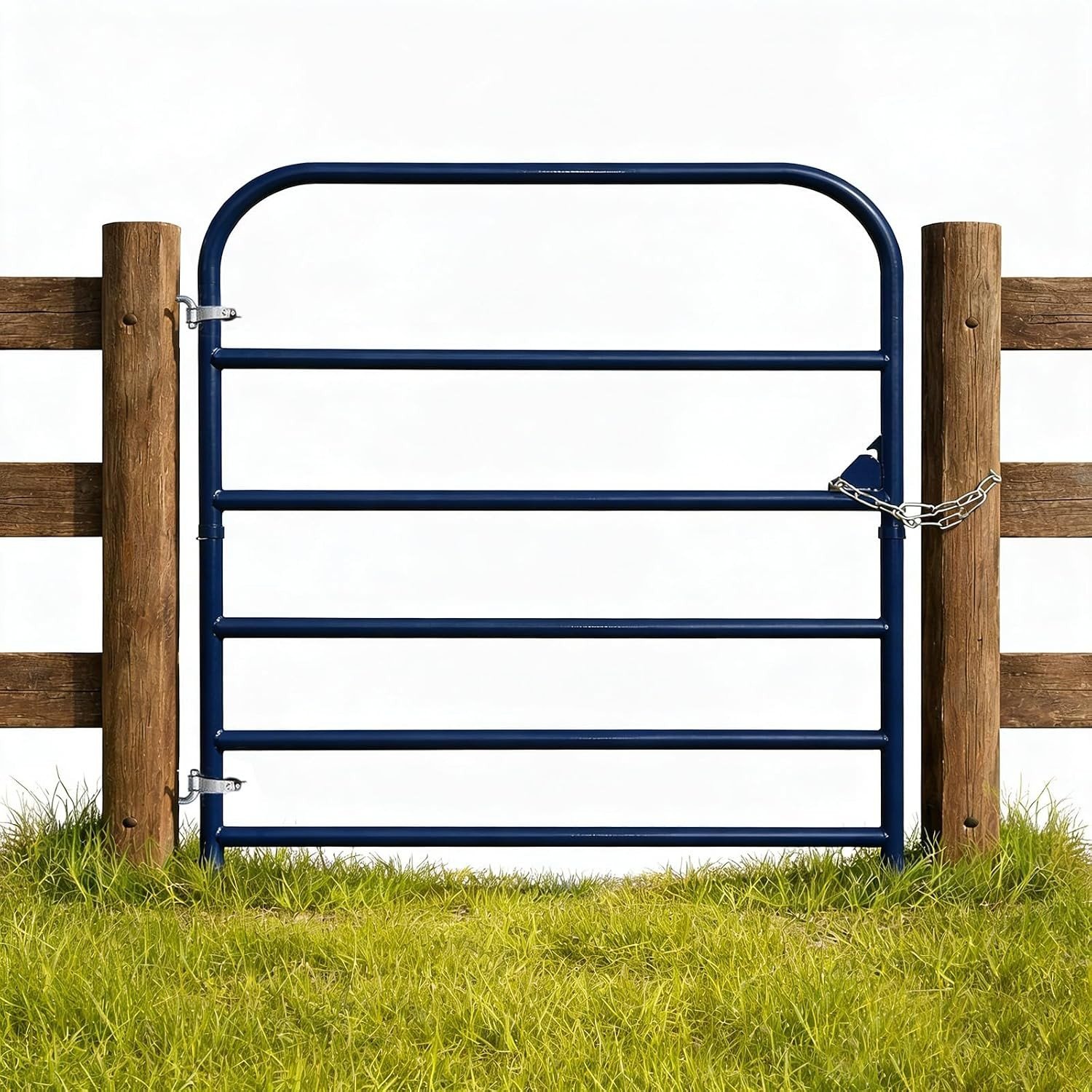

A farm tube gate is a fully welded gate made from galvanized round steel tubing, built for pasture entrances and livestock containment. A vertical Z-brace runs corner to corner to stop the gate from sagging over time, and hinges plus screw hooks are included for fast installation.
2. Applications

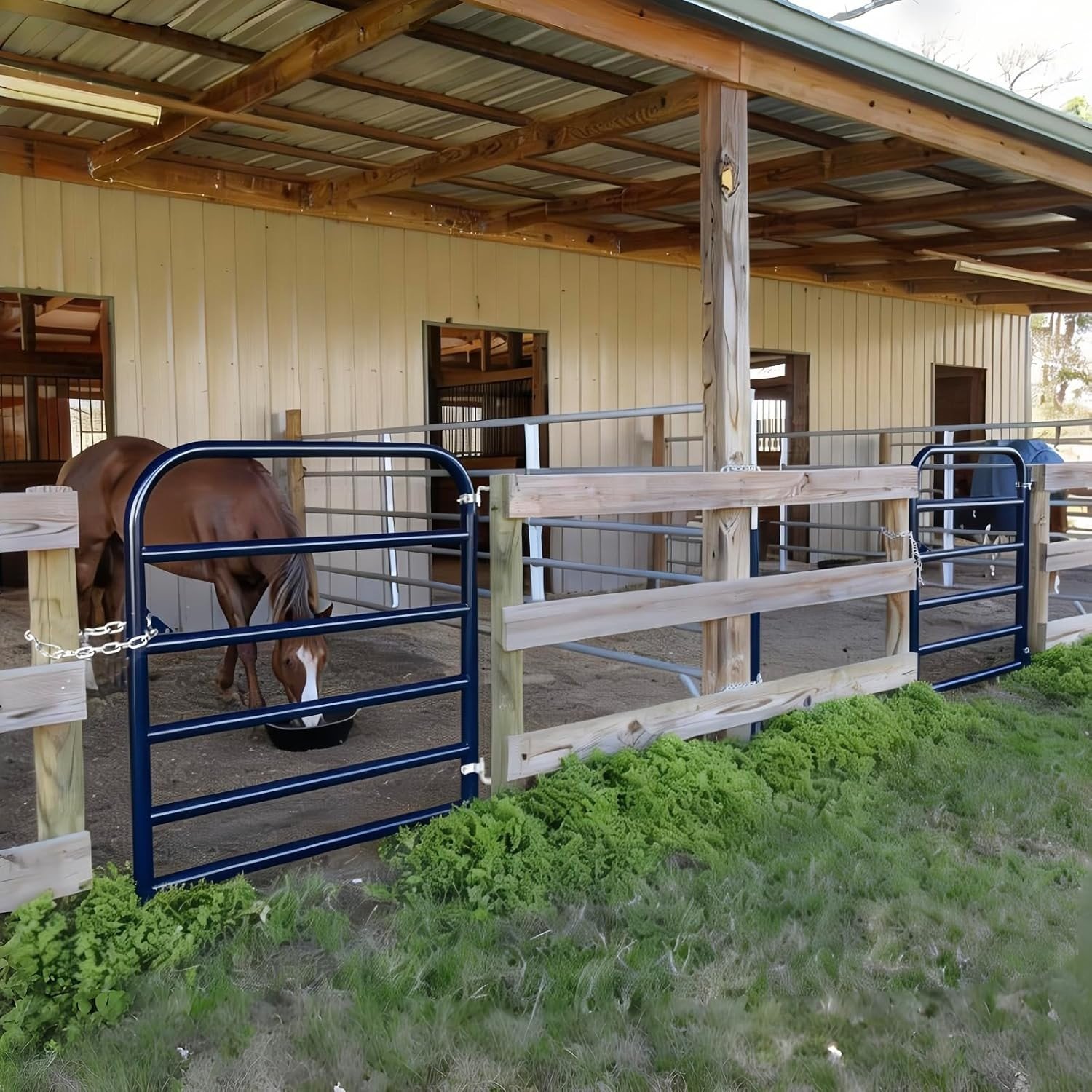

Pasture and paddock entry gates, cattle and horse yards, feedlots, driveways, ranch perimeter openings and corral gates. Ideal where a strong, low-maintenance metal gate is needed instead of wood.

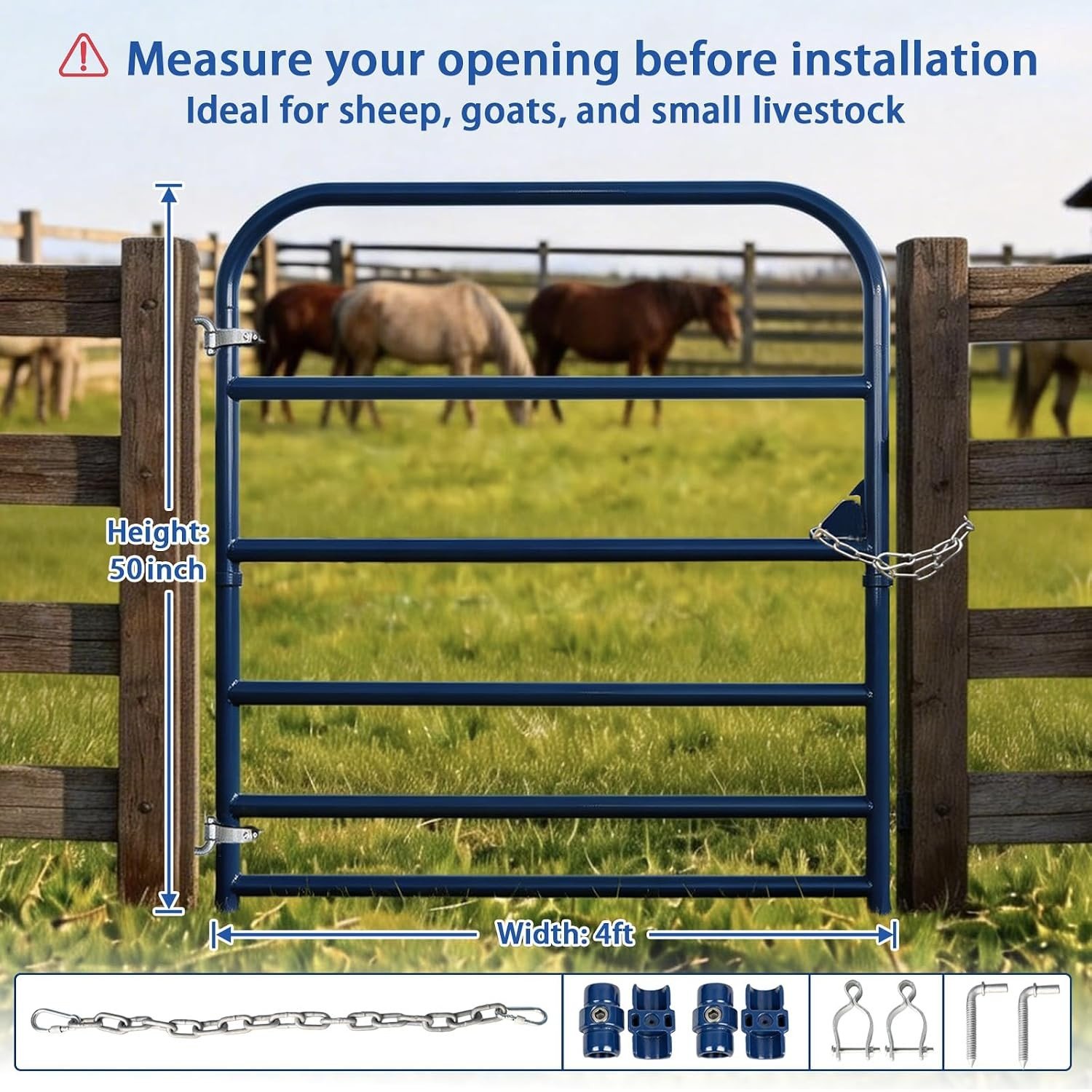

3. Specifications
- Length: 4 ft / 6 / 8 / 10 / 12 / 14 / 16 / 18 ft (1.2-5.5 m)
- Height: 50 in / 53 in (about 1.17-1.5 m)
- Frame tubing: 1-3/4 in to 2 in round tube (32-42 mm OD), 1.6-2.0 mm wall
- Rails: 4 to 6 horizontal rails
- Brace: Z-brace / N-brace / I-brace
- Finish: hot-dip galvanized inside and out

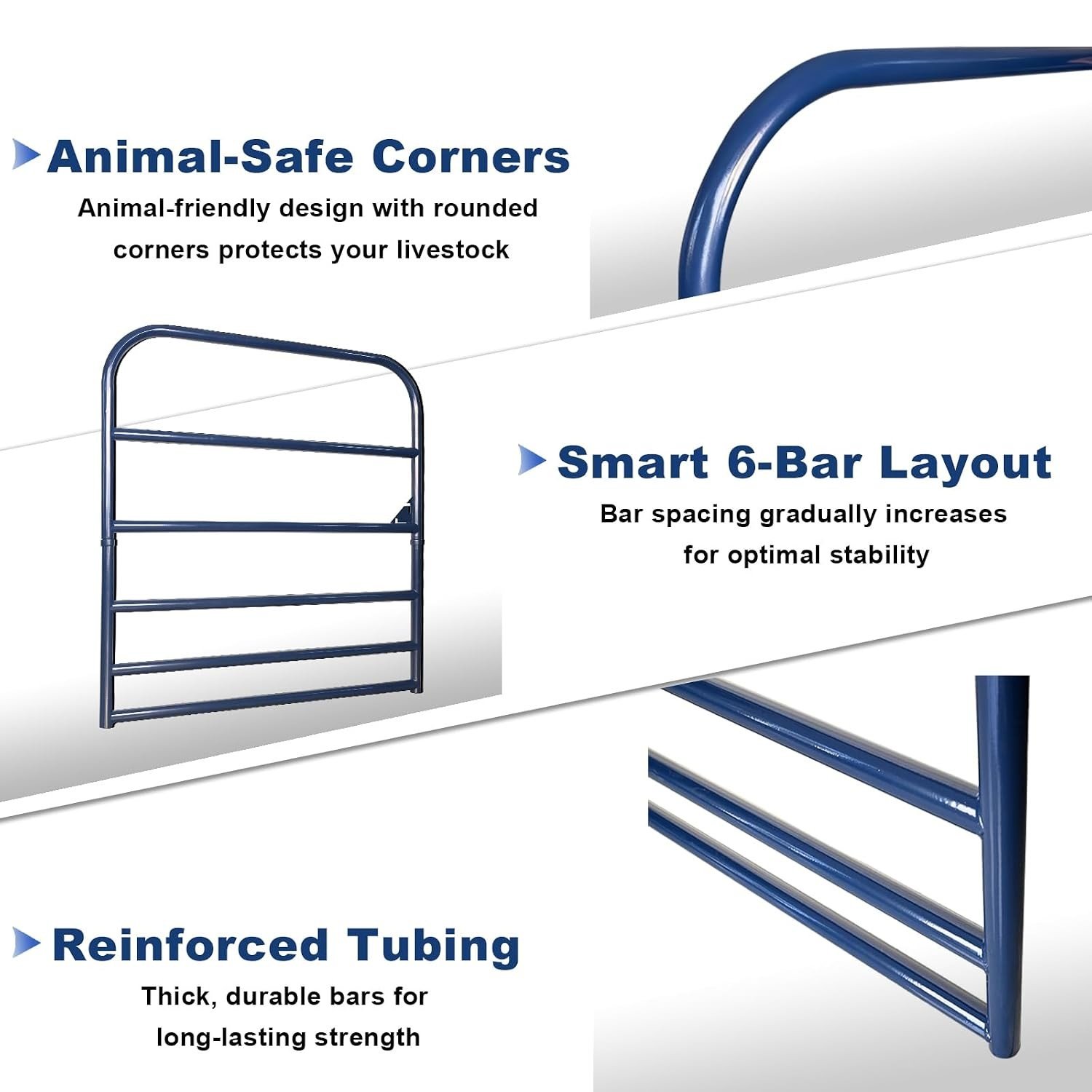

4. Key features
- — Fully welded round-tube frame, no sharp edges
- — Hot-dip galvanized inside and out for 10+ year rust protection
- — Vertical Z-brace prevents sagging and racking
- — Hinges and screw hooks included, ready to hang
- — Custom lengths, heights, rail counts and finishes on request

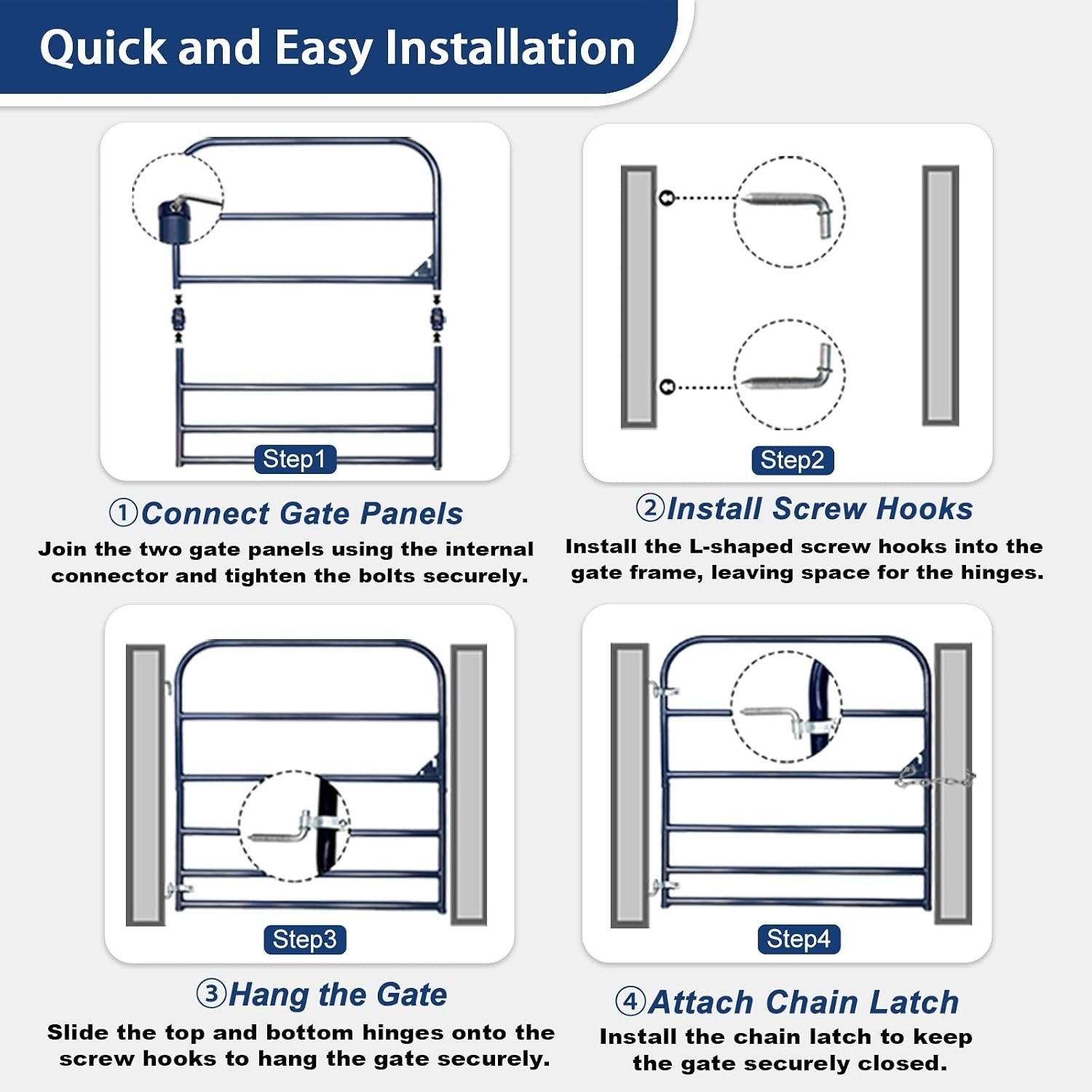

5. How to install
Hang the gate: bolt or screw the hinges to a wood post, or weld them to a steel post. Lift the gate onto the hinge pins. Mount the screw hook or latch on the opposite post. Adjust so the gate swings level and latches securely.
Send your spec, we come back with a real answer.
Tell us size, gauge, finish, quantity and target price. We respond with a quote within one business day.
