Earth Anchors.
Galvanized steel screw-in ground anchors for landscaping, erosion control, vineyards, sheds, tents and outdoor structures. Helical plates drive deep into the soil for instant holding power, no digging or concrete required.
What you get with CHANGE earth anchors.
1. Product introduction

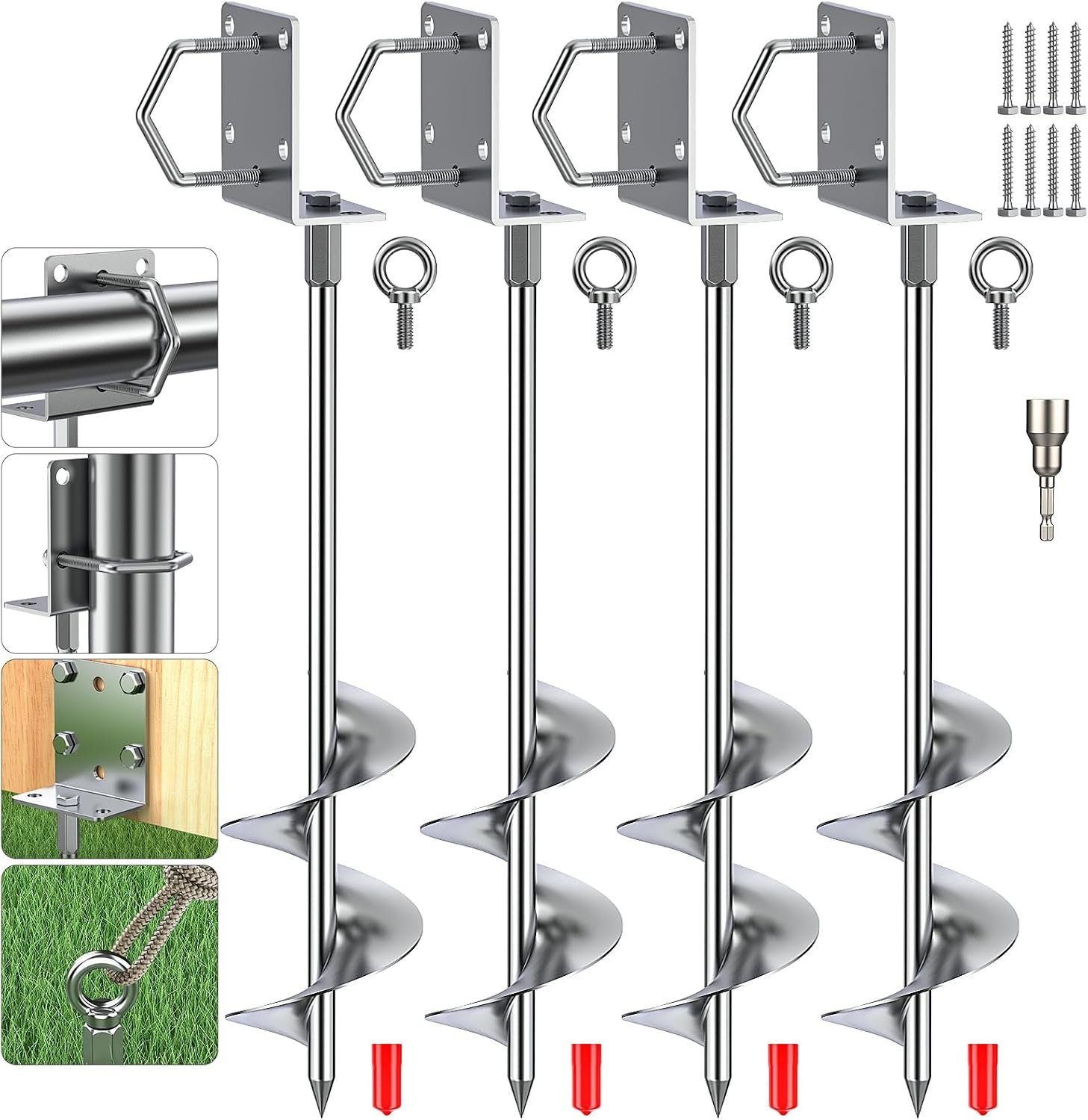

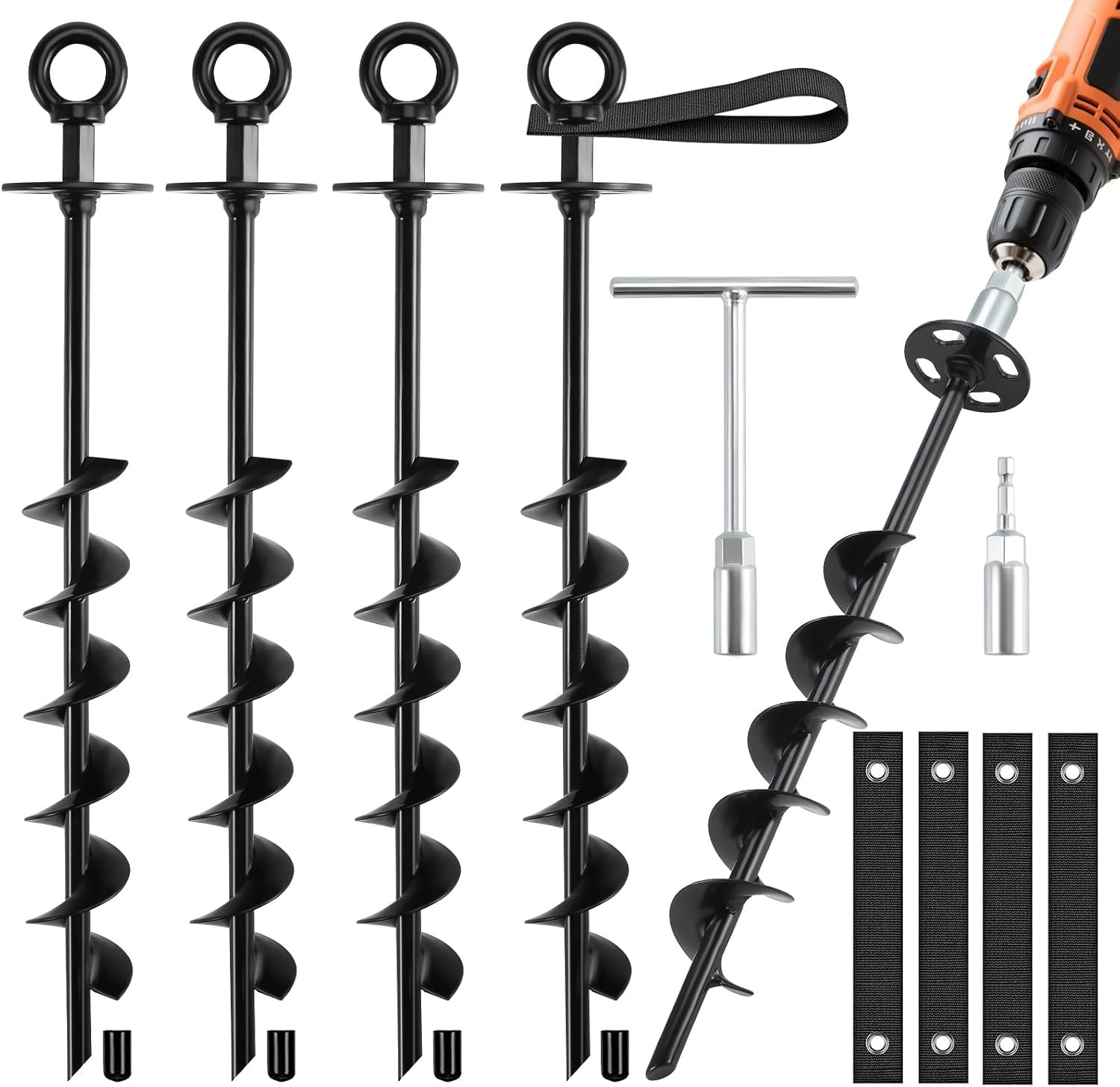

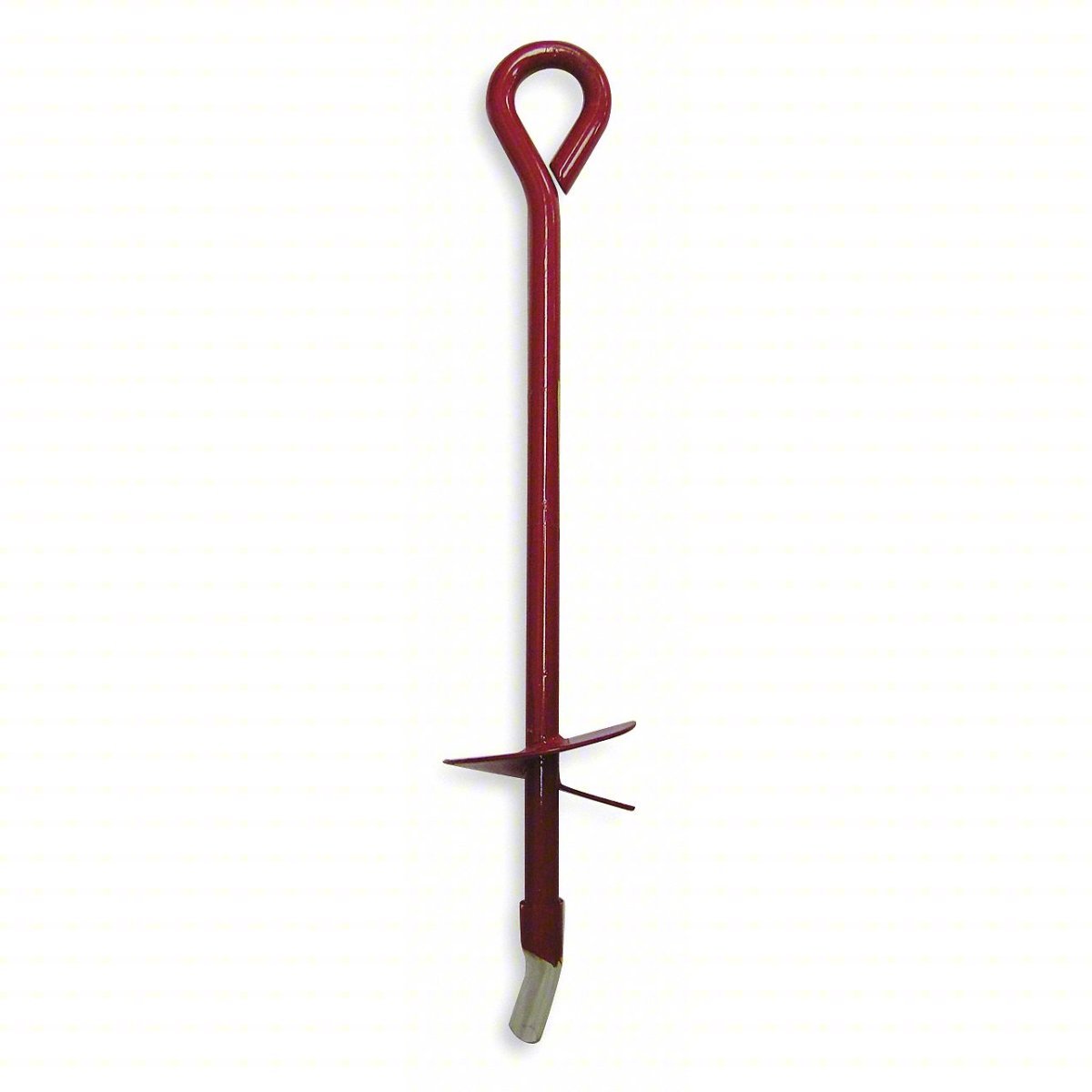

A spiral earth anchor is a screw-in or drive-type ground fixing device, typically made of high-strength steel, that anchors objects to the ground without digging holes or pouring concrete. A welded helix plate at the bottom and a welded eye loop at the top allow fast installation and instant cable / rope tie-off. The surface is hot-dip galvanized or powder-coated for long-term corrosion resistance.
2. Applications

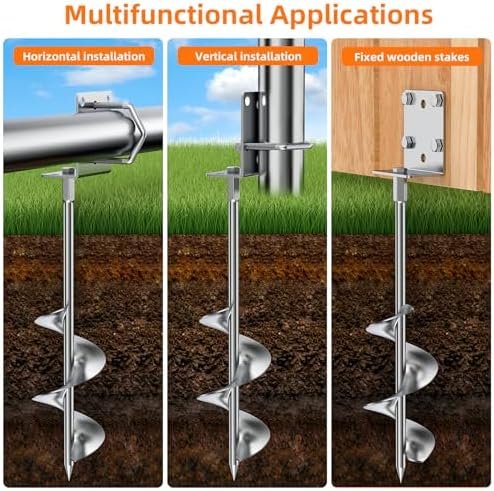

Landscaping & garden: trees, landscape timbers, edging, fences, sheds, greenhouses, turf reinforcement. Outdoor & events: tents, canopies, marquees, carports, gazebos, trampolines, swing sets. Agriculture: vineyards, orchards, end-post anchoring for trellises. Civil: erosion control, retaining walls, pipelines, solar farms, flag poles, guy lines.
3. Specifications

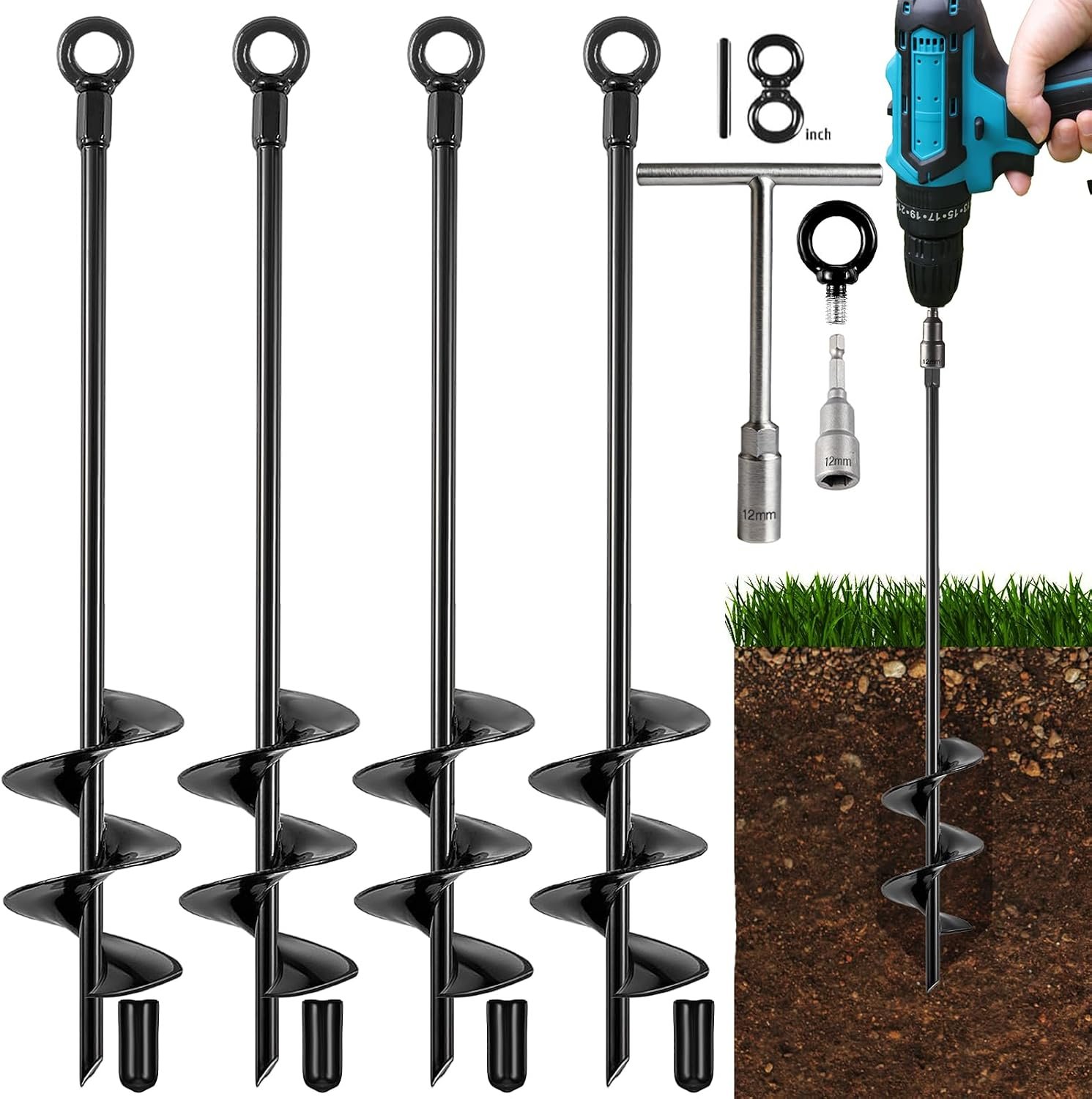

- Rod diameter: 3/8″ · 5/8″ · 3/4″ · 1″ (10-25 mm) — custom on request
- Length: 12″ / 16″ / 18″ / 20″ / 24″ / 36″ / 48″ / 60″ (30 cm – 2.4 m)
- Helix plate diameter: 4″ · 6″ · 8″ (10-25 cm)
- Helix plate thickness: 2 mm / 2.5 mm / 3 mm / 4 mm
- Surface finish: hot-dip galvanized / powder-coated (green, black, red, silver)
- Holding capacity: 325 kg to 1 800 kg depending on size and soil
4. Key features
- — No digging, no concrete. Installs in 10 seconds with a drill.
- — Removable and reusable. No permanent impact on the site.
- — Hot-dip galvanized steel for 10+ year outdoor life.
- — Welded eye loop on top for fast cable / rope tie-off.
- — Custom lengths, diameters, finishes and eye fittings on request.
- — Works in most soils (not recommended in root-heavy or rocky ground).
5. How to install
Screw-in type: Pre-drill a small pilot hole if the soil is hard. Attach the anchor to a power drill or hand wrench. Drive the anchor vertically into the soil until only the welded eye loop is above ground. Thread your cable, rope or hook through the eye.
Drive-in type (Duckbill-style): Hammer the anchor straight into the ground with a drive rod. When pulled upward, the anchor rotates into a perpendicular “lock” position in undisturbed soil. Always pull straight up to engage the lock.
Send your spec, we come back with a real answer.
Tell us length, diameter, finish, quantity and target price. We respond with a quote within one business day.
